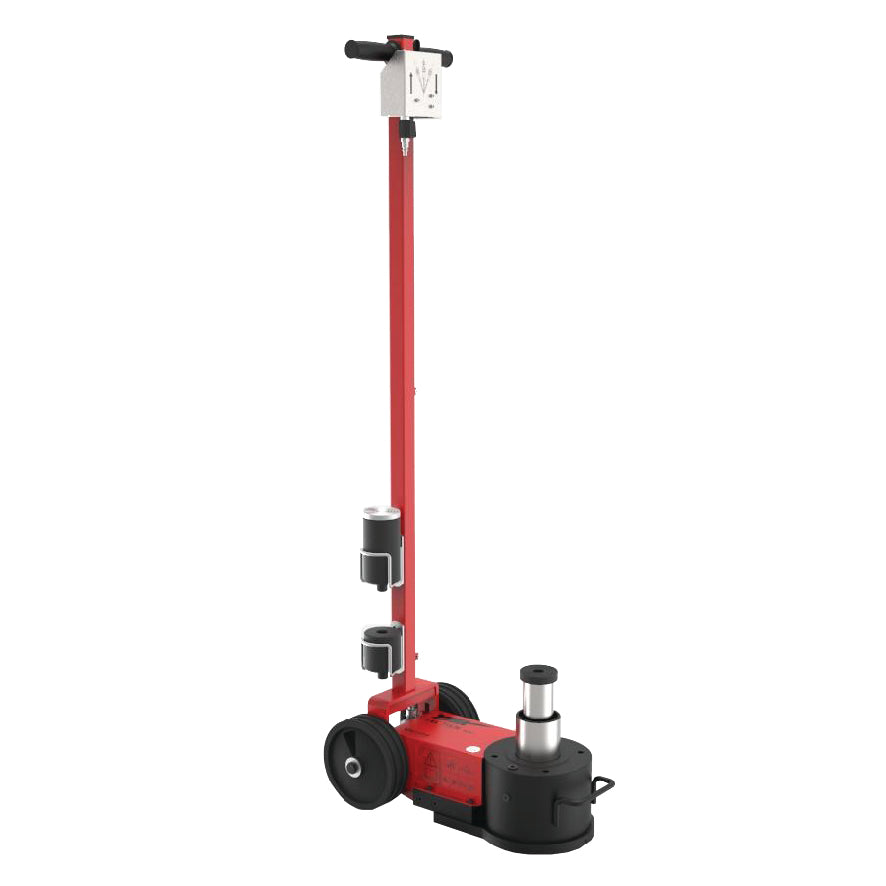

Yakjack YAK215N - Air/Hydraulic Trolley Jack (40/20T)

Yakjack YAK215N - Air/Hydraulic Trolley Jack (40/20T)

Air hydraulic jacks designed for heavy vehicles. Practical, reliable and easy to use. Air powered ascent and descent, Yak jacks are fitted with two descent valves to guarantee perfect holding in all situations and controlled speed under load. Ideal for workshops, mobile workshops, tyre repairers and bodywork shops. All YAK jacks come with extensions as standard.

Features:

• Capacity: 40/20 t   /   44.1/22 ton
• Net weight: 39 Kg   /   86 lb
• Working air pressure: 8-10 bar   /   116-145 psi
• Air consumption: 400 nl/min
• Max stroke: 150 mm   /   5.9 in
• Min. height: 150 mm   /   5.9 in
• Number of pistons: 2
• Pistons stroke: 72 – 78 mm   /   2.8 – 3.1 in

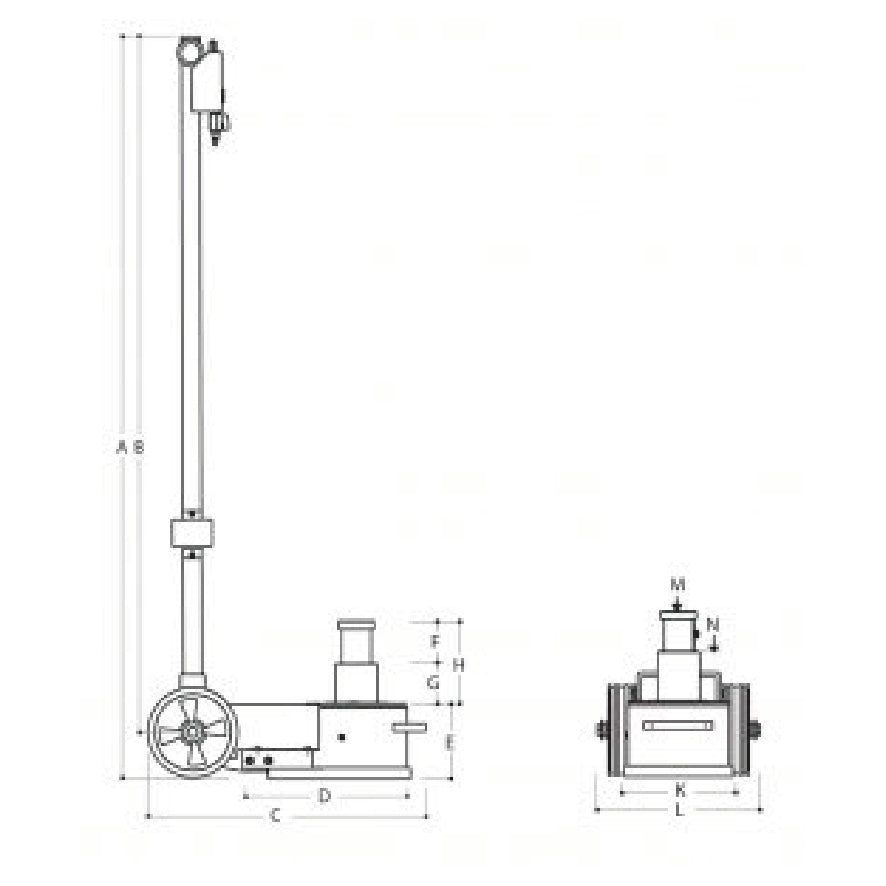

Size and Dimensions:

• A: 1400 mm/t  /  55.12 in/ton
• B: 1320 mm/t  /  51.97 in/ton
• C: 525 mm/t  /  20.67 in/ton
• D: 270 mm/t  /  10.73 in/ton
• E: 150 mm/t  /  5.91 in/ton
• F: 78 mm/t  /  3.07 in/ton
• G: 72 mm/t  /  2.83 in/ton

• H: 150 mm/t  /  5.91 in/ton

• K: 206 mm/t  /  8.11 in/ton

• L: 300 mm/t  /  11.81 in/ton

• M: 20 mm/t  /  22 in/ton

• N: 40 mm/t  /  44 in/ton
